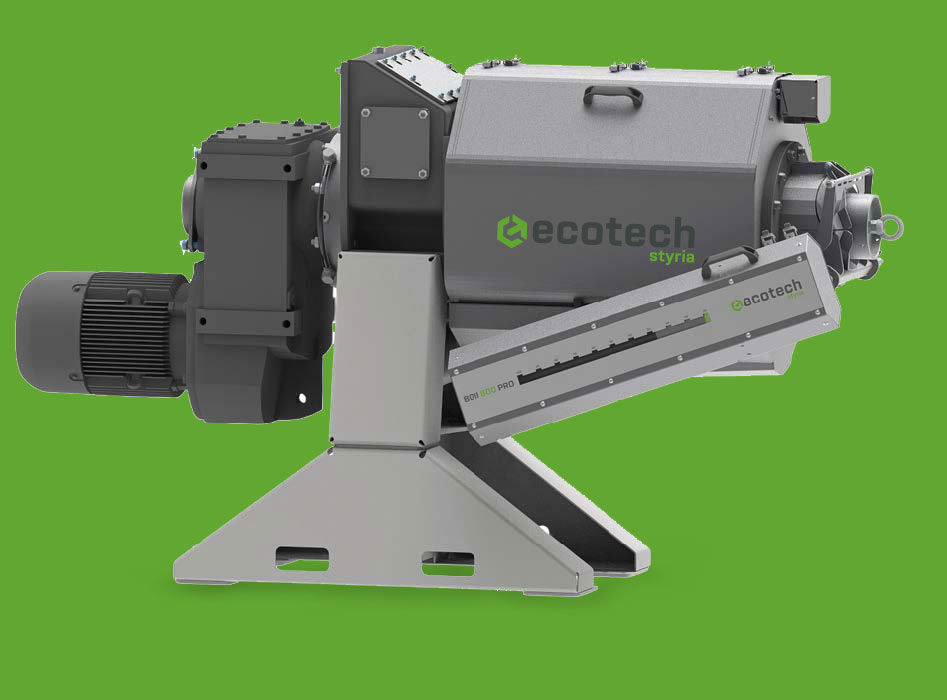

ecotech BGII-800 Filter Screw Press
Separation of fiber-suspensions into a solid and a liquid fraction.
Benefits:
Reduction of disposal cost Reuse of solids
Reuse of solids
Reuse of liquid fraction
Increaded nutrient management
Increased process efficiency
Applications
Industrial applications
Plastic recycling
Pulp & Paper
Abattoir waste
Municipal waste water
Food industry
Industrial applications
Manure from livestock
Digestates from biogas plants
Key features
Full Auto Control of the dry matter content in the solids
Monitoring of operation status (change in inlet consistency, leakages, torque, oil quality etc.)
Higly abrasion-resistant auger coating
Stainless steel construction
Up to 0.5 bar inlet pressure
Closed system, automatic washing device
Control units with open interface (ProfiNet etc.) for easy implementation

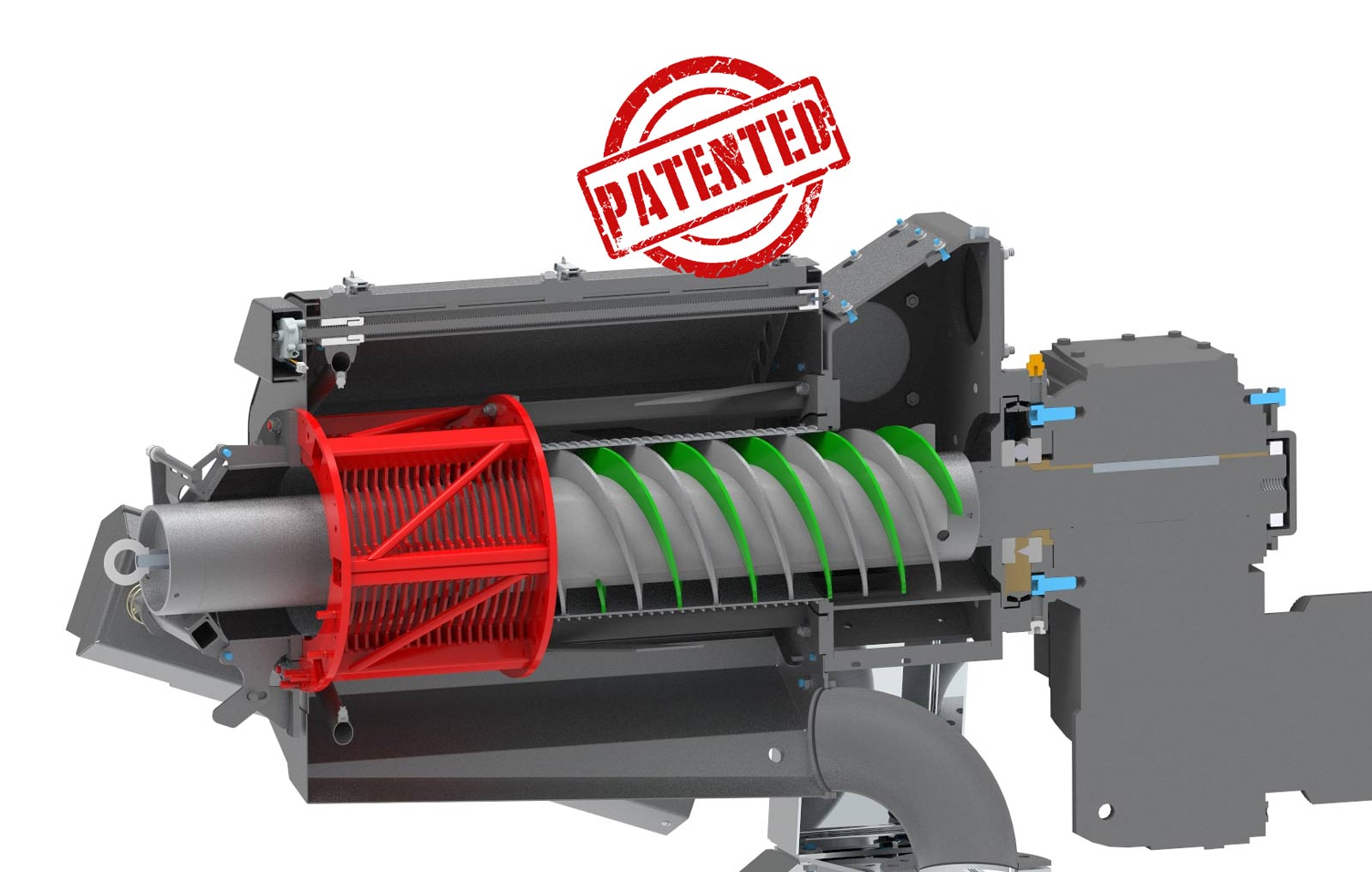

Low wear and increased throughput due to patented auger geometry and special screen basket housing in the pressing zone
Technical data:
Drive power: 5,5 – 11,0 kW
Throughput: up to 75m³/h
Dry matter organic fibers: up to 40%
Dry matter inorganic fibers: up to 75%
